SHADE STRUCTURES USA Square and Rectangle Designs
Available with 2 posts or 4 posts
Shade structures in square and rectangle designs bring maximum shade to your premises with minimal physical obstructions. Many standard sizes are available (as seen in the chart below), as well as custom shade structures build to your specifications. Our shade structures are industrial strength, meaning that they resists winds blowing at speeds up to 80 mph, and their steel frames are rated up to 150 mph. On every shade, the fabric can be removed easily, using a patented quick-release system. If you have any questions about our shade structures, phone us toll free today.
 Benefits
Our shade structures bring many great benefits to your premises, including:
• Up to 99% UV screening, and up to 92% shade
(depending on fabric color)
• 80% water repellence
• Cooler equipment -- paint and plastic are protected from fading in the sunlight
• Cooler children -- shade reduces the chance of sunburn, sunstroke, or heat exhausation
• Long service life -- each shade structure has a 10 year limited
warranty
• Wide selection of colored fabric and
colored powder coating for the steel components
• Custom sizes available. Phone us at (877) 778-8830 for information. |
Rectangular Shade Structure :: Cantilever Model
|
Shade structure fabric colors available: True Blue, Midnight Blue, Forest Green, Bottle Green, Camel
(plain beige), Plain Silver, Terracotta, Red, Yellow
Shade structure powder coating colors available (for steel components): Red, Orange, Yellow, Blue, Tan, White, Black, Brown, Teal,
Green, Fuchsia, Burgundy
Prices: See pricing chart below. |
2-Post Rectangle Shade Structure
(Interior Post)
This shade structure has a rectangular canopy, and the posts are located on the hip of the canopy. These are great for picnic areas and playgrounds, because there are no outside posts for people to avoid.
|
|

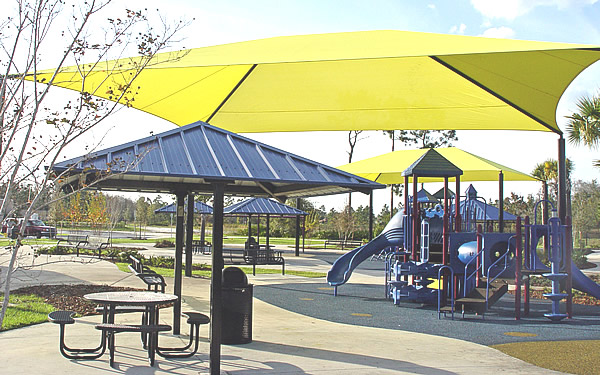

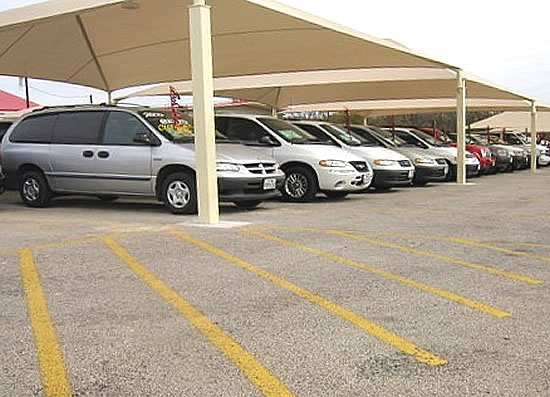

4-Post Rectangle Shade Structure
(Exterior Post)
This shade structure is the most common type of shade structure. 4-post rectangular shades are available in many sizes, with a post at each
corner. This creates stability & offers clear space underneath the shade. |
|
Note: We can design custom shade structures to the sizes and specifications of your playground. Also, prices listed here are
for shade structures whose design includes Glide Elbows at each corner, which is the design we recommend for easy removal of the shade fabric, when necessary. Prices listed here are estimates. Cost of shipping and/or installation of playground shades is additional.
SHADE STRUCTURE PRICING
NOTE: All prices
are estimated and do not include shipping or installation. Due to a recent price increase, actual prices may be 10% - 20% above list. Prices for cantilever shades may be higher than the prices listed here.
|
Square Shades (4 Columns) :: 8' Height |
| Length / Width
(feet) |
Column Size
(inches) |
Footer
Size (feet) |
Weight (Lbs.) |
Est. Price |
| 10' x 10' |
3.5 |
2 x 2 x 2 |
685 |
$2,370.00 |
| 12' x 12' |
3.5 |
2 x 2 x 2 |
670 |
NOW $2,319.00
WAS $2,450.00 |
| 14' x 14' |
3.5 |
2 x 2 x 2 |
740 |
$2,533.00 |
| 16' x 16' |
3.5 |
2 x 2 x 2 |
765 |
$2,843.00 |
| 18' x 18' |
5 |
2 x 2 x 2 |
890 |
$3,156.00 |
| 20' x 20' |
5 |
2 x 2 x 2.5 |
925 |
$3,386.00 |
| 22' x 22' |
5 |
2 x 2 x 2.5 |
953 |
$3,480.00 |
| 24' x 24' |
5 |
2 x 2 x 2.5 |
990 |
$4,052.00 |
| 26' x 26' |
5 |
2 x 2 x 2.5 |
1,117 |
$4,585.00 |
| 28' x 28' |
5 inch / 7 gauge |
2 x 2 x 3 |
1,155 |
$4,708.00 |
| 30' x 30' |
5 inch / 7 gauge |
2 x 2 x 3 |
1,320 |
$5,469.00 |
| 34' x 34' |
5 inch / 7 gauge |
2 x 2 x 3 |
1,624 |
$6,842.00 |
| 36' x 36' |
5 inch / 7 gauge |
2.5 x 2..5 x 3 |
1,928 |
N/A |
| 38' x 38' |
5 inch / 7 gauge |
2.5 x 2..5 x 3 |
2,155 |
N/A |
Square Shades (4 Columns) :: 10' Height |
| Length / Width
(feet) |
Column Size
(inches) |
Footer
Size (feet) |
Weight (Lbs.) |
Est. Price |
| 10' x 10' |
3.5 |
2 x 2 x 2 |
825 |
$2,804.00 |
| 12' x 12' |
3.5 |
2 x 2 x 2 |
850 |
$2,886.00 |
| 14' x 14' |
3.5 |
2 x 2 x 2 |
878 |
$2,913.00 |
| 16' x 16' |
3.5 |
2 x 2 x 2 |
905 |
$3,278.00 |
| 18' x 18' |
5 |
2 x 2 x 2 |
940 |
$3,372.00 |
| 20' x 20' |
5 |
2 x 2 x 2.5 |
975 |
$3,600.00 |
| 22' x 22' |
5 |
2 x 2 x 2.5 |
1,002 |
$3,695.00 |
| 24' x 24' |
5 |
2 x 2 x 2.5 |
1,182 |
$4,588.00 |
| 26' x 26' |
5 |
2 x 2 x 2.5 |
1,310 |
$5,121.00 |
| 28' x 28' |
5 inch / 7 gauge |
2 x 2 x 3 |
1,345 |
$5,244.00 |
| 30' x 30' |
5 inch / 7 gauge |
2 x 2 x 3 |
1,670 |
$5,963.00 |
| 34' x 34' |
5 inch / 7 gauge |
2 x 2 x 3 |
2,009 |
$7,169.00 |
| 36' x 36' |
6 |
2.5 x 2.5 x 3 |
2,258 |
N/A |
| 38' x 38' |
6 |
2.5 x 2.5 x 3 |
2,305 |
N/A |
Rectangular Shades (4 Columns) :: 8' Height |
| Length / Width
(feet) |
Column Size
(inches) |
Footer
Size (feet) |
Weight (Lbs.) |
Est. Price |
| 10' x 12' |
3.5 |
2 x 2 x 2 |
696 |
$2,424.00 |
| 10' x 15' |
3.5 |
2 x 2 x 2 |
713 |
$2,499.00 |
| 10' x 18' |
3.5 |
2 x 2 x 2 |
738 |
$2,577.00 |
| 10' x 20' |
3.5 |
2 x 2 x 2 |
750 |
$2,857.00 |
| 13' x 15' |
3.5 |
2 x 2 x 2 |
732 |
$2,542.00 |
| 13' x 20' |
3.5 |
2 x 2 x 2 |
761 |
$2,899.00 |
| 15' x 22' |
3.5 |
2 x 2 x 2 |
883 |
$3,203.00 |
| 15' x 25' |
5 |
2 x 2 x 2.5 |
915 |
$3,293.00 |
| 18' x 20' |
5 |
2 x 2 x 3 |
902 |
$3,209.00 |
| 18' x 24' |
5 |
2 x 2 x 2.5 |
929 |
$3,364.00 |
| 18' x 28' |
5 |
2 x 2 x 2.5 |
1,040 |
$3,788.00 |
| 18' x 32' |
5 |
2 x 2 x 3 |
1,069 |
$4,269.00 |
| 18' x 36' |
5 |
2 x 2 x 3 |
1.097 |
$4,456.00 |
| 20' x 24' |
5 |
2 x 2 x 2.5 |
953 |
$3,513.00 |
| 20' x 26' |
5 |
2 x 2 x 2.5 |
966 |
$3,573.00 |
| 20' x 30' |
5 |
2 x 2 x 3 |
992 |
$4,055.00 |
| 20' x 34' |
5 |
2 x 2 x 3 |
1,116 |
$4,599.00 |
| 20' x 38' |
5 |
2 x 2 x 3 |
1,146 |
$4,734.00 |
| 24' x 26' |
5 |
2 x 2 x 3 |
1,002 |
$4,119.00 |
| 24' x 30' |
5 |
2 x 2 x 3 |
1,033 |
$4,330.00 |
| 24' x 34' |
5 |
2 x 2 x 3 |
1,181 |
$4,739.00 |
| 24' x 38' |
5 |
2 x 2 x 3 |
1,320 |
$5,503.00 |
| 24' x 40' |
5in / 7gauge |
2 x 2 x 3 |
1,335 |
$5,579.00 |
| 28' x 30' |
5in / 7gauge |
2 x 2 x 3 |
1,288 |
$5,055.00 |
| 28' x 34' |
5in / 7gauge |
2 x 2 x 3 |
1,326 |
$5,477.00 |
| 28' x 38' |
5in / 7gauge |
2.5 x 2.5 x 2.5 |
1,358 |
$5,847.00 |
| 28' x 42' |
5in / 7gauge |
2.5 x 2.5 x 2.5 |
1,389 |
$N/A |
Rectangular Shades (4 Columns)
10' Height |
Length / Width
(feet) |
Weight
(Lbs.) |
Est. Price |
10' x 12' |
835 |
$2,858.00 |
10' x 15' |
852 |
$2,933.00 |
10' x 18' |
880 |
$3,012.00 |
10' x 20' |
888 |
$3,291.00 |
13' x 15' |
870 |
$2,976.00 |
13' x 20' |
900 |
$3,335.00 |
15' x 22' |
933 |
$3,415.00 |
15' x 25' |
965 |
$3,508.00 |
18' x 20' |
952 |
$3,424.00 |
18' x 24' |
980 |
$3,579.00 |
18' x 28' |
1,090 |
$3,999.00 |
18' x 32' |
1,261 |
$4,806.00 |
18' x 36' |
1,290 |
$4,994.00 |
20' x 24' |
1,003 |
$3,728.00 |
20' x 26' |
1,016 |
$3,788.00 |
20' x 30' |
1,184 |
$4,253.00 |
20' x 34' |
1,308 |
$5,137.00 |
20' x 38' |
1,338 |
$5,270.00
|
24' x 26' |
1,195 |
$4,656.00 |
24' x 30' |
1,226 |
$4,868.00 |
24' x 34' |
1,566 |
$5,207.00 |
24' x 38' |
1,705 |
$5,998.00 |
24' x 40' |
1,720 |
$6,078.00 |
28' x 30' |
1,673 |
$5,523.00 |
28' x 34' |
1,711 |
$5,941.00 |
28' x 38' |
1,742 |
$6,174.00 |
28' x 42' |
1,774 |
$5,938.00 |
|
Rectangular Shades (4 Columns)
12' Height |
Length / Width
(feet) |
Weight
(Lbs.) |
Est. Price |
10' x 12' |
885 |
$2,996.00 |
10' x 15' |
902 |
$3,072.00 |
10' x 18' |
930 |
$3,150.00 |
10' x 20' |
938 |
$3,429.00 |
13' x 15' |
921 |
$3,115.00 |
13' x 20' |
950 |
$3,473.00 |
15' x 22' |
1,150 |
$3,927.00 |
15' x 25' |
1,180 |
$4,017.00 |
18' x 20' |
1,167 |
$3,932.00 |
18' x 24' |
1,193 |
$4,089.00 |
18' x 28' |
1,305 |
$4,511.00 |
18' x 32' |
1,333 |
$4,994.00 |
18' x 36' |
1,362 |
$5,181.00 |
20' x 24' |
1,218 |
$4,237.00 |
20' x 26' |
1,230 |
$4,297.00 |
20' x 30' |
1,256 |
$4,780.00 |
20' x 34' |
1,380 |
$5,323.00 |
20' x 38' |
1,410 |
$5,458.00 |
24' x 26' |
1,267 |
$4,843.00 |
24' x 30' |
1,298 |
$5,055.00 |
24' x 34' |
1,919 |
$5,728.00 |
24' x 38' |
2,057 |
$6,550.00 |
24' x 40' |
2,073 |
$6,630.00 |
28' x 30' |
2,026 |
$6,057.00 |
28' x 34' |
2,064 |
$6,494.00 |
28' x 38' |
2,095 |
$6,727.00 |
28' x 42' |
2,127 |
$N/A |
|
Rectangular Shades (4 Columns) :: 14' Height |
| Length / Width
(feet) |
Weight (Lbs.) |
Est. Price |
Sizes up to
24' x 26' |
Please call us. |
Please call us. |
24' x 30' |
$1,693 |
PLEASE CALL |
24' x 34' |
2,070 |
PLEASE CALL |
24' x 38' |
2,209 |
PLEASE CALL |
24' x 40' |
2,225 |
PLEASE CALL |
28' x 30' |
2,177 |
PLEASE CALL |
28' x 34' |
2,215 |
PLEASE CALL |
28' x 38' |
2,246 |
PLEASE CALL |
28' x 42' |
2,278 |
PLEASE CALL |
 Superior Shade, Inc. manufactures our shade structures, bringing years of experience to your shade structure project.
|
